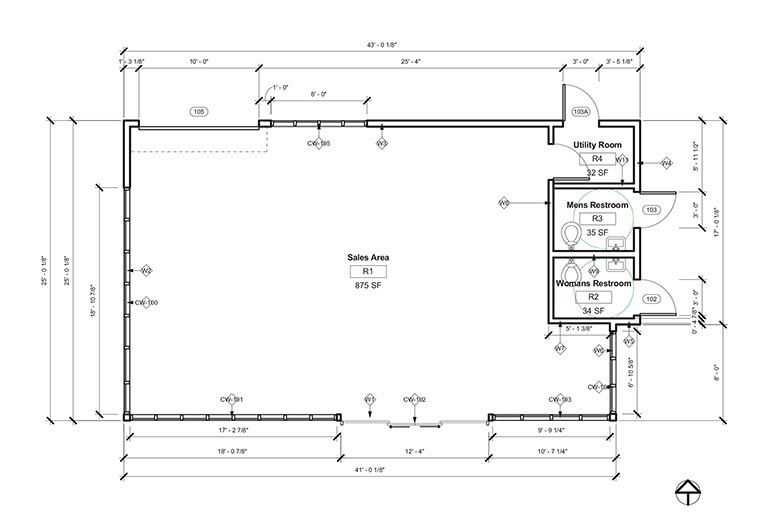

Service Station Store First Floor Plan (Existing Conditions). Generated using Autodesk Revit 2014.

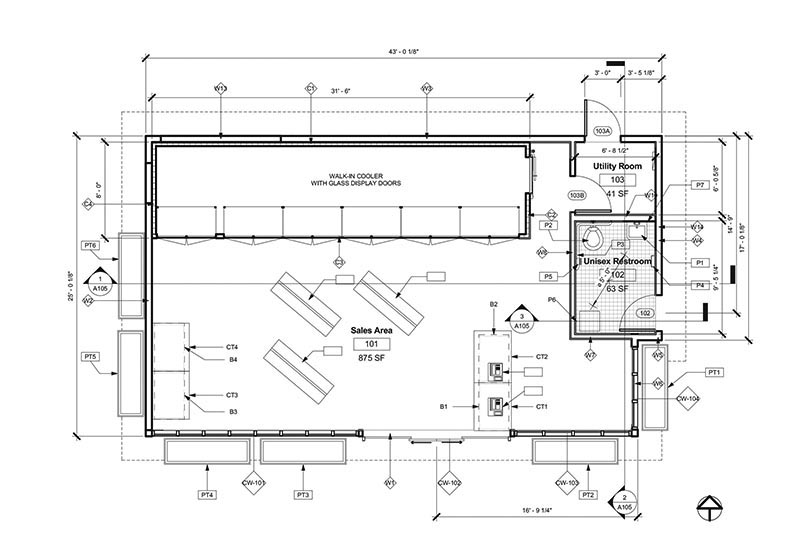

Service Station Store First Floor Plan (Remodeled). Generated using Autodesk Revit 2014.

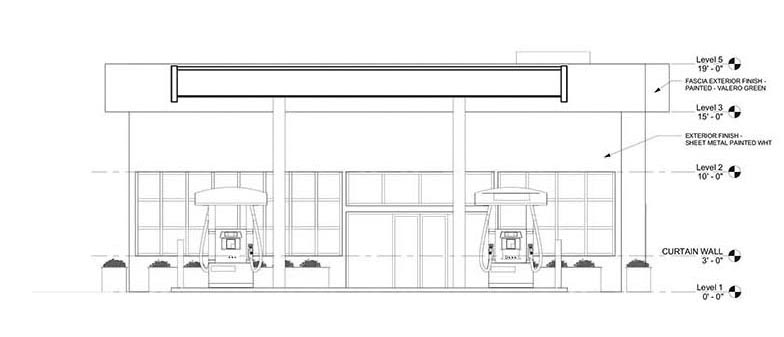

Service Station Store Front View (After Remodel). Generated using Autodesk Revit 2014.

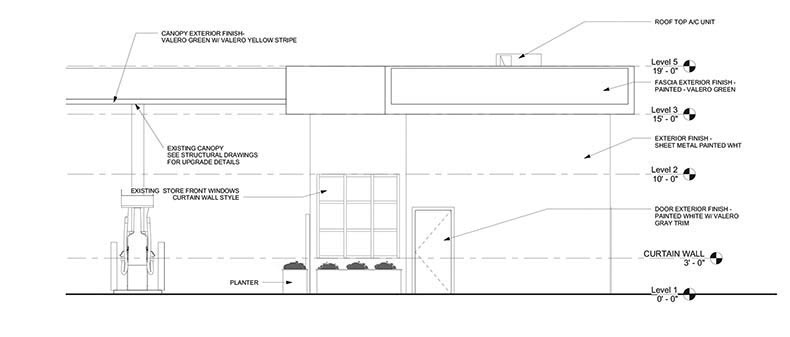

Service Station Store East Elevation (After Remodel). Generated using Autodesk Revit 2014.

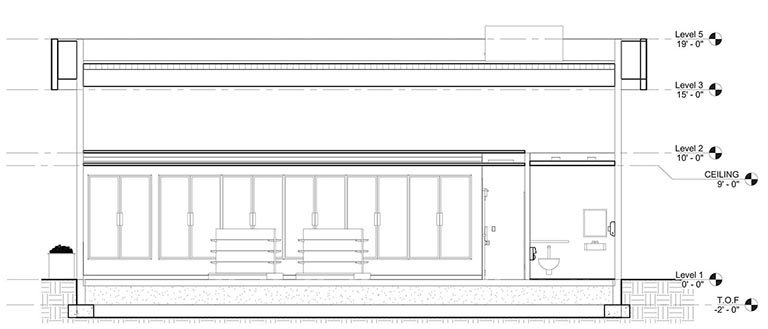

Service Station Store Building Section Looking North. Generated using Autodesk Revit 2014.

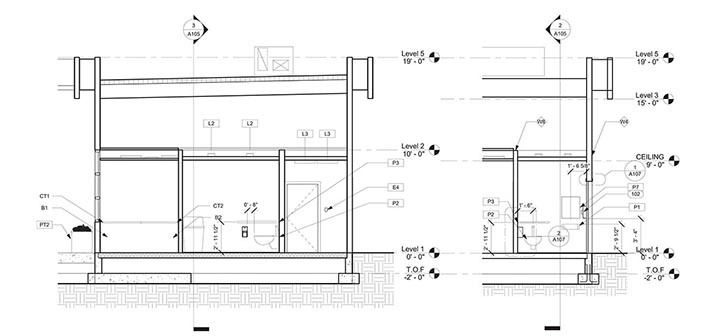

Service Station Store Building Sections through Restroom. Generated using Autodesk Revit 2014.

Renderings

Rendered Interior View Showing Lighting and Beverage Display Case. Image Generated using Revit 2014.

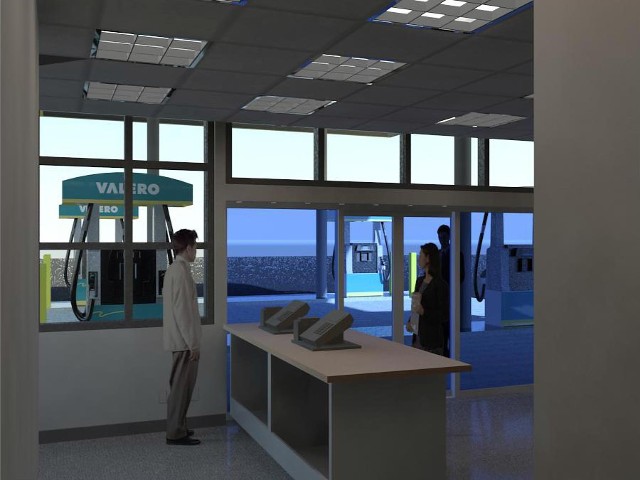

Rendered Interior View Looking at Fuel Dispensers. Image Generated using Revit 2014.

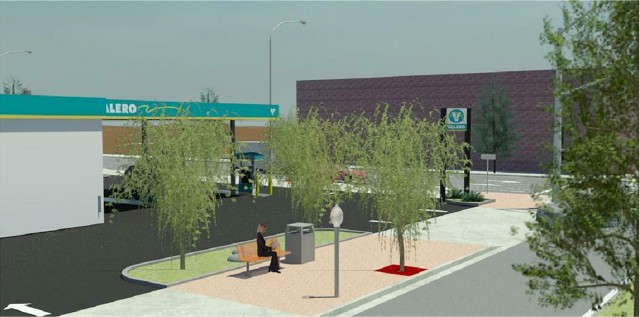

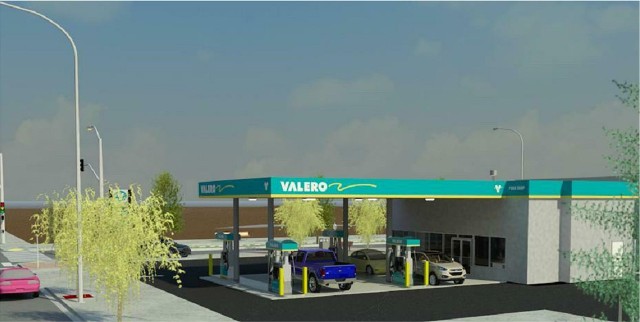

Site -  Perspective Rendering Viewed from South West Corner. Image Generated using Revit 2014.

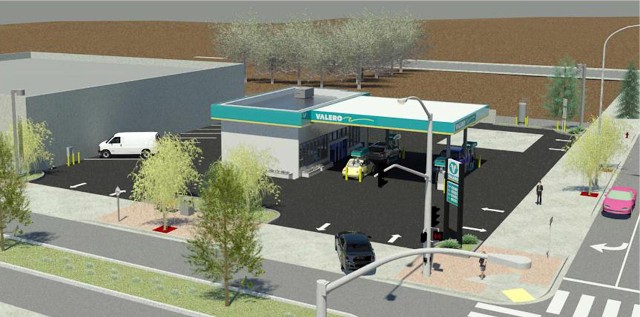

Site - Perspective Rendering Viewed from North West Corner. Image Generated using Revit 2014.

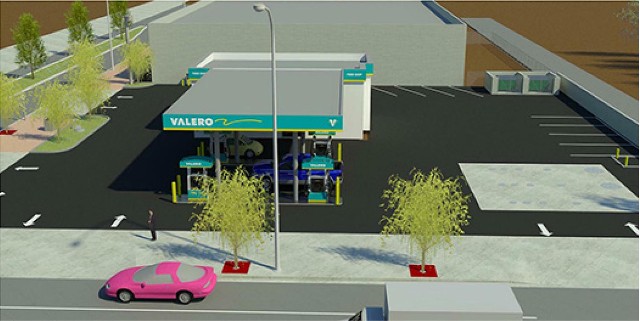

Site - Perspective Rendering Viewed from South of Building. Image Generated using Revit 2014.

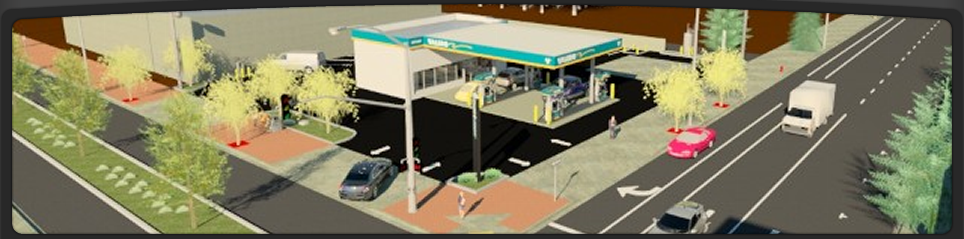

Site - Perspective Rendering Viewed from South East Corner. Image Generated using Revit 2014.

AutoCAD 3D Modeling

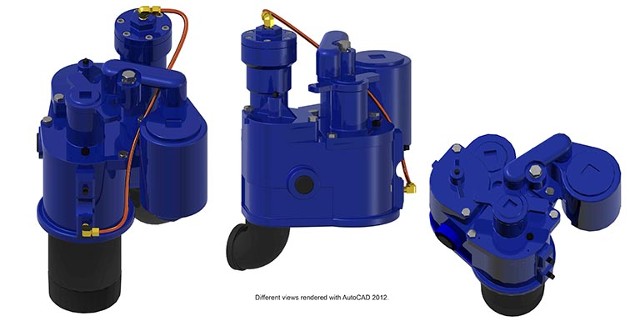

This a 3D model of a FE-Petro Fuel Oil Pump that I modeled for a fuel system project. Two different models are shown. The first two include a mechanical leak detector while the third is shown without the mechanical leak detector. This was modeled in AutoCAD using 3d primitives, then materials were added for rendering. Model is based on 2d pdf’s from manufacturer. Rendering was done with AutoCAD 2012.

Exterior 3DS MAX Design Perspective Renderings:

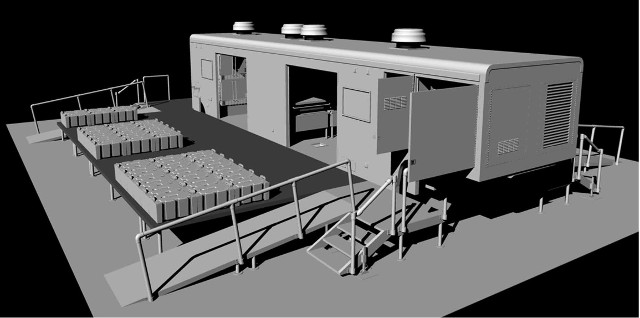

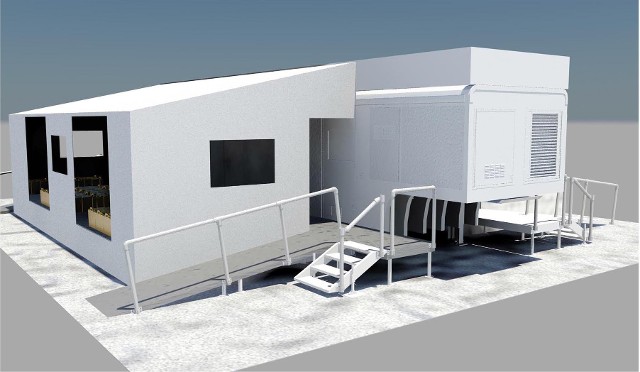

AutoCAD 2013 Greyscale Rendering of Disaster Relief Mobile Kitchen.

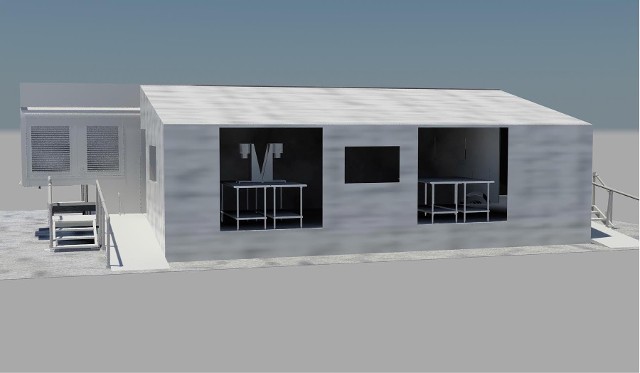

3DS MAX Design 2014 rendering of Disaster Relief Mobile Kitchen.

3DS MAX Design 2014 rendering of Disaster Relief Mobile Kitchen.
